Sawing Mist Collectors: Complete Selection Guide

Sawing Mist Collector
Sawing Mist Collector

Sawing Mist Collectors: Complete Selection Guide!

Sawing mist collectors are used to control mist exposures generated by circular sawing machines, which use oil as coolant. The mist generated from sawing operations is harmful to workers; it may contain oil particles such as PM2.5 & PM10. If they inhale these, they will suffer various health issues, such as respiratory issues, skin irritation, and carcinogenic exposure. There are also some environmental and safety issues, such as slippery floors, equipment damage, and poor air quality. In this article, we will discuss solutions to these issues, including oil mist collectors, the parameters for selecting them, and their benefits. Let’s first discuss the health issues.

Sawing Mist Health Issues:

Exposure to sawing machine mist poses significant risks to workers, as they are in direct contact with it during long working hours. Understanding the health effects is crucial for making informed decisions about installing an sawing mist collectors in the workspace. The health issues associated with this exposure include the following:

Respiratory Issues:

Respiratory problems resulting from prolonged work exposure lead to workers inhaling fine mists. This exposure frequently results in symptoms such as coughing, dry throat, and sensations of tightness in the chest and throat. Over time, these effects can contribute to the development of more serious conditions, including asthma and chronic bronchitis.

Skin Irritation:

Workers directly contact cutting fluids, which results in dry skin, rashes, and contact dermatitis.

Carcinogenic Exposure:

Workers are directly exposed to harmful oil mist, which leads to, firstly, respiratory issues, and maybe if anyone has more exposure, he/she can suffer from cancer.

All these health issues due to harmful oil mist are problematic in the long run, which deteriorates the goodwill of the organization, so taking necessary steps to control this exposure is essential for any organization in a long-term context.

Environmental & Safety Hazards:

There are a few environmental and safety hazards such as poor air quality, slippery floors, and mist buildup.

Poor air quality:

High exposure to oil mist creates a visible oily haze and unpleasant odors in closed or small spaces, which deteriorates the air quality in the workplace.

Slippery Floors:

Oil mist generated by sawing machines can make floors slippery due to its oily particles, which leads to exposing employees to slippery health hazards.

Equipment mist buildup:

Mist buildup attracts dust and lint, resulting in gunk accumulation on tools and parts. This phenomenon leads to increased maintenance over time, emphasizing the importance of addressing mist buildup to ensure efficient operations and long-term savings.

Fine oil mist generated during sawing operations can remain suspended in the workplace air. Prolonged exposure to certain oil mists may present occupational health concerns. For more information on mineral oil mist, exposure monitoring, and occupational exposure limits, refer to the OSHA guidelines on mineral oil mist.

Minimum Quantity Lubrication (MQL): In Sawing

Most of the sawing applications use an MQL-type lubrication system due to certain advantages.

The minimum quantity lubrication (MQL) system delivers a small amount of oil to the saw blade tip using compressed air. Tiny fluid usage: Instead of gallons of liquid coolant, it uses drops of oil (like 20 ml per hour).

Some of the advantages of the MQL system for sawing are:

Direct targeting: Blasts a fine mix of air and oil directly where the saw teeth touch the metal.

Dry chips: Makes metal chips completely dry so they are simple to recycle and worth more money.

Longer blade life: Avoids heat shock to the saw teeth, keeping the blade sharp for a longer time.

With these advantages, however, MQL generates very fine mist, which can spread all over if not controlled well. ESP-type mist collectors are found to be the most effective solution for controlling mist.

How Electrostatic Precipitation Helps in Minimum Quantity Lubrication In Sawing:

An electrostatic precipitator (ESP) is an air filter that removes any fine oil smoke or particle mist that is generated during the high-speed metal cutting process of sawing.

How it works and what its advantages:

Electrical charging: Gives an electrical charge to small, floating oil smoke particles in the air.

Magnetic collection: Draws charged oil bits to opposite metal plates within the filter.

Clean air output: Blows clean air back in to the shop room instead of spreading in the work environment.

Easy Maintenance: ESP filters are washable in nature, so workers can easily clean them using our special type of degreaser, just like new in condition. Periodic maintenance keeps this ESP-based system working perfectly fine for the long run.

MQL with ESP filtration solutions works and complements well, and it effectively removes the oil mist from the sawing operation.

Parameters for Sawing Mist Collector Selection:

Selecting an sawing mist collectors requires evaluating airflow volume (CFM/CMH), coolant type (oil-based or synthetic), filtration efficiency, and enclosure capture design. These parameters play a vital role in selecting the best sawing mist collectors.

Airflow and Sizing Parameters:

  • Enclosure Volume: To determine the correct enclosure volume, or the appropriate size of the mist collector, multiply the dimensions of the internal cutting area by the required air change rate. This rate typically ranges from 4 to 10 air changes per minute for standard enclosures, which will help identify the necessary size for the mist collector.
  • Capture Velocity: To capture velocity correctly, maintain a minimum face velocity at open access points or hoods to pull stray droplets away from the saw blade.
  • Ductwork and Bends: To maintain the required airflow, add equivalent straight-pipe lengths for bends and transitions to avoid static pressure drops that reduce suction performance.

Fluid and Particle Characteristics

  • Coolant Composition: Pure neat oil generates smaller, more persistent aerosols that necessitate high-efficiency filters or electrostatic precipitators. In contrast, water-soluble coolants may require centrifugal or media filters.
  • Particle Size: Fine sub-micron smoke and dry particulate from high-speed sawing need electrostatic precipitation or HEPA or multi-stage media configurations, as per OSHA and CPCB guidelines.

Operational and Physical Constraints

  • Noise Level: Please select units operating under 65–80 dBA to comply with safe workshop sound limits.
  • Footprint and Mounting: To make mounting easier, choose machine-mounted, floor-standing, or overhead units depending on the floor space around your band or circular saw.
  • Maintenance Frequency: Maintenance frequency is an important parameter as a factor in how easily drainage, filter washing, or core replacements can be performed to minimize production downtime.
If your Sawing  machines operate without proper oil mist control, efficiency is being lost daily. Evaluate your setup or consult an expert like Filter ON India  to select the right system as per requirement, budget and scope. Contact us to learn more….

Frequently Asked Questions:

1. What health issues can be caused by mist from sawing machines?

Ans: Fine oil and coolant mist can remain suspended in the air and may cause eye, skin, or respiratory irritation with prolonged exposure. A suitable mist collector helps capture airborne mist at the source and supports a cleaner workplace.

Ans: A mist collector reduces airborne oil and coolant mist, helping maintain cleaner air, cleaner machinery, and safer working areas. It can also reduce oil deposits and slippery surfaces around the machine.

Ans: Key parameters include machine make and model, enclosure size, material being cut, workpiece diameter, oil pressure, coolant type and flow rate, blade speed, operating hours, and machine layout.

Ans: The required airflow depends on factors such as enclosure volume, air changes, capture velocity, and ductwork pressure losses. Coolant type and particle size also influence the filtration technology, while noise, mounting space, drainage, and maintenance access should be considered for practical installation.

Visit  blogs to learn more about the critical features of clean air system design and air pollution control systems created by Filter On India.

Filter On India has been working towards “Mission Zero Pollution” for the last 40+ years as a clean air solutions partner for industries. We specialize and have expertise in welding fumes, oil mist, coolant mist, dust collection, soldering, laser marking, laser cutting, plasma cutting, fumes in fastener manufacturing, ball point tip manufacturing, oil quenching, kitchen fumes, etc. Filter On has 70+ clean air solutions, so you can contact us for more information about our solutions. You can reach us through the web or visit us at our corporate office at Pune, or mail us at : marketing@filter-on.com

Facebook
Twitter
LinkedIn
Categories
Blogs

Sliding Head Mist Collectors: Complete Selection Guide

Sliding Head Mist Collectors Blog
Sliding Head Mist Collectors Blog

Sliding Head Mist Collectors: Complete Selection Guide!

Oil mist collectors for sliding-head machines precisely control sliding-head mist and fumes. These fumes are very hazardous to health, as these fumes can impact workers and make the work environment polluted. As a result, to control fumes from sliding-head machines, oil mist collectors must have some of the key features that we will be discussing here in this blog post.

Why and What Should You Look For In Sliding Head Mist Collectors:

When we consider a sliding head mist collector for the first time, we need to look at some of the key factors, which are listed below. These reinforce your decision to purchase a right sliding head mist collector.

  • Purpose: Sliding head mist collectors are essential for extracting high-volume, sub-micron oil mists from Swiss-type CNC lathes using high-pressure neat oils.
  • Specialization: These machines require compact and efficient filters due to their operation in tight enclosures with thick, ultra-fine mist.
  • Filtration Efficiency: Look for oil mist collectors with electrostatic precipitators (ESPs) that can capture 95–99% of particles down to 0.3 to 0.5 microns, as other types of standard filters are inadequate.
  • Filter Type: Manufacturers like Filter ON provide specialized ESP filtration solutions tailored for neat oil processing in sliding head lathes.
  • Mounting of sliding head mist collectors: Choose units with a compact design, able to be directly top-mounted onto machine enclosures or pillar mounted near sliding head machines, optimizing shop-floor space while maintaining high capacity (300 m³/hr to 2000 m³/hr). Combining multiple machines in a common larger size Mist Collector system also would save space.

Role of ESP in Sliding Head Mist Collectors:

Electrostatic precipitation is one of the finest technologies to capture harmful particles from sliding head machining Mist & Fumes and filter them and provide clean air back to the work environment. ESP plays a very vital role in sliding head mist collector filtration, as it has the following features:

  • Minimal Power Cost: Unlike the other technologies, ESPs work in very low power due to their innovative electrostatic technology, which uses less power while working.
  • Zero Cost on Filter Replacement: As sliding head mist collectors use ESP cells and their pre- as well as post-filters, all are washable in nature. You can use it for as long as you require by just periodic cleaning based on your usage pattern so that your replacement cost for filters is saved due to this technological advancement.
  • Minimal Pressure Drop: The significant aspect of ESP-based sliding head mist collectors is that they have a limited pressure drop, which is almost 50% less than equivalent capacity Media type filters.

Parameters to decide on a sliding head mist collector:

There are a few parameters you should consider while selecting the best sliding head mist collector, which are the following:
  • Checking the make & model: When selecting a sliding head mist collector, it is essential to check the make and model of the sliding head machine. This information helps determine the appropriate capacity for the mist collector, as different makes and models of sliding heads have unique arrangements for mist generation and discharge. Our (Filter ON’s) sliding head mist collector is compatible with the following brands of sliding head machines:
  1. Citizen
  2. Star
  3. Tornos
  4. Tsugami
  5. Rollomatic
  • Rod Diameter: In sliding head machines, rod diameter has a considerable imp act on machining processes such as cutting forces, spindle speed, coolant flow, and oil mist volume. Larger rod diameters require higher coolant flow and longer cutting cycles, resulting in more coolant and oil mist. Efficient mist collectors gather airborne mist at its source, improving air quality and safety and eliminating slippery leftovers. The ideal mist collector size is determined by coolant type, pressure, enclosure volume, spindle speed, and duty cycle. Thus, for best mist collector performance, entire machining conditions must be evaluated rather than just rod diameter.
  • Oil Pressure: When cutting oil or coolant is supplied under high pressure, it atomizes into fine droplets that create oil mist. Increased oil pressure correlates with more oil atomization, leading to greater airborne mist concentration and the potential need for more efficient mist collectors. For instance, at low pressure (5–20 bar), standard mist collectors suffice; at medium pressure (20–50 bar), higher airflow and filtration are necessary; and at high pressure (50–150+ bar), high-performance collectors are required due to the large amounts of fine mist generated. Sliding head machines utilize high-pressure cutting oil systems to enhance chip breaking, tool cooling, and dimensional accuracy, necessitating careful consideration of oil pressure alongside other factors such as oil flow rate, spindle speed, and machine enclosure size when choosing mist collectors.
  • Material Used: Common materials used in sliding head machining include stainless steel (SS), aluminum, brass, copper, titanium, carbon steel/alloy steel, and engineering plastics. Stainless steel, particularly grades like SS 303, 304, and 316, is often used for medical parts and automotive components, generating fine oil mist due to high cutting resistance. Aluminum, used in electronics and aerospace, produces significant mist at high spindle speeds. Machining brass and copper produces oil mist and fine chips, but titanium requires more oil at higher temperatures, which increases mist formation. Carbon steel and alloy steel produce moderate- to high-mists, depending on the conditions.  The choice of material influences various factors, such as oil temperature and pressure, cutting speed, and chip formation, which affect mist production. For instance, machining stainless steel with high-pressure oil results in finer, more abundant mist compared to brass at lower parameters. All of these materials significantly influence the level of mist exposure generated by sliding head machines.
  • Requirement of Layout: In the case of multiple sliding head machines installed at the plant, one can think of a centralized system for sliding head mist collection, i.e., the layout of the entire plant or the area in which sliding head machines are installed is required to optimize fume and mist generation from there to effectively capture and filter fumes and mists and provide workers with a cleaner work environment.

 If your Sliding head machines operate without proper oil mist control, efficiency is being lost daily.

Evaluate your setup or consult an expert like Filter ON India  to select the right system as per requirement, budget and scope. Contact us to learn more….

Frequently Asked Questions:

1. Why is a mist collector required for a sliding head machine?

Ans: Sliding head machines operate at high spindle speeds and often use high-pressure cutting oil or coolant. This combination produces fine oil mist that can escape into the workplace. A mist collector captures these airborne particles, improving air quality, operator safety, machine cleanliness, and overall productivity.

Ans: The ideal mist collector depends on factors such as coolant type, oil pressure, spindle speed, machine enclosure, and production hours. For machines using neat cutting oil and generating very fine submicron mist, an Electrostatic Precipitator (ESP) is often an excellent choice because of its high filtration efficiency and oil recovery capability.

Ans:Yes, provided the total airflow requirement (CFM or m³/h), duct design, and machine operating schedule are properly calculated. Centralized systems are suitable for multiple machines, while individual units provide dedicated extraction.

Ans:Yes. Many ESP-based and centrifugal mist collectors separate oil from the air stream, allowing recovered oil to drain back into a collection tray. This reduces oil wastage and helps keep the work area clean

Ans: Maintenance frequency depends on machine utilization, oil type, filtration technology, and production hours. Routine inspection and cleaning help maintain airflow, filtration efficiency, and equipment life. Typical cycles vary from once in 6 weeks to once in 4 months.

Visit  blogs to learn more about the critical features of clean air system design and air pollution control systems created by Filter On India.

Filter On India has been working towards “Mission Zero Pollution” for the last 40+ years as a clean air solutions partner for industries. We specialize and have expertise in welding fumes, oil mist, coolant mist, dust collection, soldering, laser marking, laser cutting, plasma cutting, fumes in fastener manufacturing, ball point tip manufacturing, oil quenching, kitchen fumes, etc. Filter On has 70+ clean air solutions, so you can contact us for more information about our solutions. You can reach us through the web or visit us at our corporate office at Pune, or mail us at : marketing@filter-on.com

Facebook
Twitter
LinkedIn
Categories
Blogs

How Oil Mist Collectors Improve Productivity in VMCs and HMC’s

Mist Collectors for HMC's & VMC's to Improve Productivity
Mist Collectors for HMC's & VMC's to Improve Productivity

How Oil Mist Collectors Improve Productivity in HMCs and VMC’s.

Mist generated during machining in HMCs and VMCs spreads throughout the work environment, creating an unhealthy atmosphere that can lead to various health issues for machine operators. Mist Collectors for HMC's & VMC's provide an effective and efficient solution by capturing coolant and oil mist at the source, helping create a cleaner, safer, and mist-free machining environment. This not only improves worker productivity but also contributes to better indoor air quality and compliance with workplace safety standards. In this blog post, we will discuss "How Oil Mist Collectors Improve Productivity in VMCs and HMCs", covering key aspects such as coolant mist control, filtration efficiency, and oil recovery.

Controlling the mist using Mist Collectors for HMCs & VMCs:

When we think of mist control in HMCs and VMCs, we need to look into coolant mist control, as HMCs and VMCs require coolant to run, and they generate a high amount of mist during operations. To control the coolant mist, we need to know about the following factors:

  • Application Details: It is important to understand the specific application context.
  • Type of oil/coolant:It is important to know whether neat cutting oil or water-soluble coolant is used, as this information is necessary for recommending the appropriate oil mist collector.
  • Machining oil and coolant pressure: Machining oil and coolant pressure (expressed in bar) are required to determine the oil-mist collector capacity and size.
  • Size of Door Opening: The size of the door opening is needed when we consider the oil mist collector, as the size of the door is required for maintenance purposes.
  • Cutting Chamber Size: Cutting chamber size is in LXWXH parameters required to measure how much mist can be generated while cutting the workpiece.
  • Coolant Type:   When we consider coolant mist collectors for HMC and VMC, the type of coolant is necessary to be checked, as there are flood-type and micromist-type coolants. It is important because both of these types generate different mist characteristics, depending on the type.

Key benefits of mist collectors for VMC's & HMC's



  1. Improved Air Quality for Operators

Mist collectors for HMC’s & VMC’s improve air quality for operators by reducing the airborne coolant mist and smoke. It creates a cleaner and healthier workspace and minimises health issues among workers, such as breathing discomfort and eye irritation as well as long-term health hazards like bronchitis, lung cancer, COPD, etc.

  1. Reduced Machine Downtime

Mist collectors for HMCs and VMCs improve air quality for operators, thus reducing machine downtime by preventing oil mist build-up inside machine enclosures. It also reduces maintenance interruptions by improving mist exposure. It keeps CNC machines operating efficiently for longer hours by reducing the smoke and mist.

  1. Better Visibility During Machining

When operators are doing machining work, mist spreads all over inside CNC, VMC and HMC machines, especially inside enclosures. Mist collectors remove this fog and mist from enclosures. It helps operators to monitor the machining process clearly, and as a result, it improves accuracy and operational safety.

  1. Longer Machine Life

For longer machine life, a mist collector for HMC’s and VMC’s prevents sticky oil deposits on electrical panels and machine parts. It also reduces wear and tear on sensitive components. It protects bearings, sensors and control systems.

  1. Lower Maintenance Expenses

The maintenance costs of HMC’s and VMC’s  are high due to mist exposure and periodic wear and tear; for that reason, there is a need for a mist collector that is beneficial for cleaning requirements around machines and shop floors. It also reduces coolant quality issues.

  1. Improved Worker Productivity

For increasing productivity among workers, a mist collector will surely help by creating cleaner environments, which improves the comfort and morale of operators. As exposure to oil mist is controlled by using a mist collector, there will be fewer health-related interruptions and absenteeism. These will help operators focus better on machining operations, which ultimately improves workers’ productivity.

  1. Enhanced Coolant Recovery

Mist collectors for HMC’s & VMC’s  will help in oil and coolant recovery as well; they capture coolant that can be drained back into the machine. They help in reducing coolant wastage. It also improves operational efficiency and cost savings.

  1. Compliance with Industrial Safety Standards

Mist collectors for HMC’s & VMC’s machines contribute to maintaining safer workplace conditions. These mist collectors comply with OSHA, CPCB, and factory safety regulations, ensuring adherence to current standards. By implementing a standard mechanism to control mist, they enhance the company’s reputation and readiness for audits.

  1. Cleaner Overall Shop Environment

Mist collectors for HMC’s & VMC’s clean the shop environment by collecting harmful mist, which prevents oil deposits on floors, walls and lighting fixtures. It reduces slip hazards in machining areas. It maintains professional, organised production spaces very well.

 If your HMC’s & VMC’s  machines operate without proper oil mist control, efficiency is being lost daily.

Evaluate your setup or consult an expert like Filter ON India  to select the right system as per requirement, budget and scope. Contact us to learn more….

Frequently Asked Questions:

1. Why do VMCs and HMCs require oil mist collectors?

Ans: VMCs and HMCs generate coolant mist during machining operations. Oil mist collectors capture these airborne particles, helping maintain cleaner air, improve operator safety, and protect machine components.

Ans: By reducing machine contamination, improving visibility inside enclosures, and minimizing maintenance requirements, oil mist collectors help reduce downtime and improve overall productivity.

Ans:Yes. Oil mist collectors prevent oil deposits from accumulating on electrical panels, sensors, and machine components, reducing wear and maintenance costs while extending equipment life.

Ans:The right solution depends on the coolant type, mist volume, and machining process. ESP-based oil mist collectors are often preferred for their high efficiency, washable filters, and low operating costs in case of neat cutting oil. For soluble coolants,centrifugal type Mist Collector is the optimum choice.

VMCs and HMCs generate coolant mist during machining operations. Oil mist collectors capture these airborne particles, helping maintain cleaner air, improve operator safety, and protect machine components.

Visit  blogs to learn more about the critical features of clean air system design and air pollution control systems created by Filter On India.

Filter On India has been working towards “Mission Zero Pollution” for the last 40+ years as a clean air solutions partner for industries. We specialize and have expertise in welding fumes, oil mist, coolant mist, dust collection, soldering, laser marking, laser cutting, plasma cutting, fumes in fastener manufacturing, ball point tip manufacturing, oil quenching, kitchen fumes, etc. Filter On has 70+ clean air solutions, so you can contact us for more information about our solutions. You can reach us through the web or visit us at our corporate office at Pune, or mail us at : marketing@filter-on.com

Facebook
Twitter
LinkedIn
Categories
Blogs

Role of Oil Mist Collectors in Cold Forging (Nut Former) Performance Optimization.

Mist Collector for Cold Forging
Mist Collector for Cold Forging

Role of Oil Mist Collectors in Cold Forging (Nut Former) Performance Optimization.

Oil mist collectors for nut formers i.e. cold forging application have played crucial role in providing efficient solutions from mist generation from these processes. Electrostatic precipitation technology is suitable technology for effectively captures and filters oil mist from cold forging machines. Due to heavily generated mists from cold forging machines leads to dropping employee productivity, results in lots of health issues among workers. An mist collector for cold forging helps improve air quality, reduce maintenance, and optimize nut former performance in high-speed manufacturing environments. In this blogpost we are going to discuss about “ Role of Oil Mist Collectors in Cold Forging (Nut Former) Performance Optimization.”

The Hidden Problem in Cold Forging Application:

One of the main hidden problems in cold forging i.e. high-speed nut forming generates fine oil mist that spreads across machines and air. This leads to poor visibility for the workers, machine contamination, respiratory and severe health risks, and frequent maintenance of machines.

How Oil Mist Collector Works For Cold Forging:

Oil mist collector works on the principle of capturing the particles, Filters them with multi filtration system i.e. Pre and after filter if there is an ESP the ESP stack ionizes these particles based on its electrostatic charge, and provides clean air through exhaust duct.

Critical Areas of Nut Formers(Cold Forging) Affected By Oil Mist:

The Critical areas of nut formers( Cold Forging) application where oil mist spread and damage the parts or impact on efficiency of operation are as follows: Die & punch lubrication zone Multi-station transfer section Machine enclosure The Critical areas of nut formers( Cold Forging) application where oil mist spread and damage the parts or impact on efficiency of operation are as follows:

  • Die & punch lubrication zone
  • Multi-station transfer section
  • Machine enclosure

In these parts oil mist spreads and it damages it thoroughly which can be a real and critical issue of cold forging operation if these are not controlled properly.

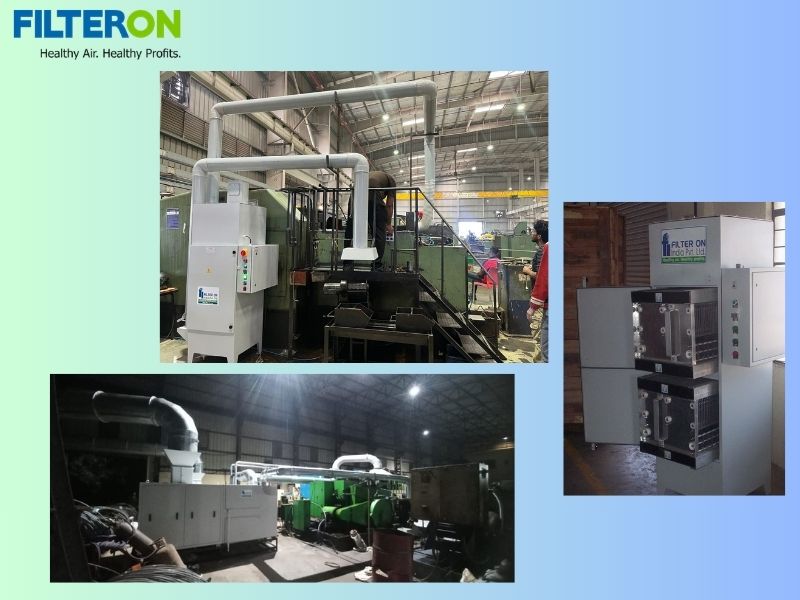

Mist Collector for Cold Forging

Key Benefits of Mist Collectors For Cold Forging

1) Work Environment and Workers Safety: Workers who work on cold forging applications have to suffer long term respiratory issues due to mists from cold forging applications containing sub micron particles due to its high pressure lubrication. Without oil mist collectors, workers suffer with health issues and reduced visibility near cold forging applications.

An effective oil mist collector solves this problem by capturing fine particles less than 1 micron with its multi filtration system such as pre and after filters. Its very effective for providing breathable air in work environment as well as it reduces risk of compliance.

2) Machine Reliability & Reduce Maintenance

Oil mist settles on sideways, bearings and sensors of all the machines, it also settles on electrical panels and PLC systems which leads to premature wear and tear, malfunction in sensors which leads to electrical short risks.

An oil mist collector for cold forging prevents oil settlement and spread, which improves uptime of machines and significantly reduces downtime which improves productivity ultimately.  It is also helpful in lower maintenance frequency for nut formers.

3) Tool Life & Product Quality Improvement:

For Nut forming the dies and punches require consistent lubrication, excess airborne oil with soot & metal particles can redeposit unevenly. If these are not controlled following issues are occurred,

  • Inconsistent lubrication film

  • Surface defects on nuts (marks, oil stains)

  • Faster die wear

With an oil mist collector it stabilizes the lubrication environment, it improves dimensional consistency and surface finish.

4) Reduction in fire hazard

Oil mist with soot & metal particles is flammable and due to its concentrated form near high speed cold forging zones and electrical panel its very dangerous.

Oil Mist collector removes these oil particles, it reduces risk of fire/explosion which is important for enclosed multi-station nut formers.

5) Cleaner Shop Floor = Better Productivity

A cleaner shop floor improves productivity. Without the extraction, sticky oil film spreads on floors which causes slip hazards, oil deposits on walls, lights which causes poor illumination.

An oil mist collector collects this mists effectively which helps in a cleaner environment, less housekeeping cost and improved safety & worker efficiency.

6) Oil Recovery & Cost Savings

An advanced oil mist collector combines and drains oil back through a drain pipe which allows reuse of cutting oil, this results in reduced oil consumption and lower operating cost over time.

7) Regulatory & Client Compliance

Regulatory and client compliance are the most important factors because recent air quality and pollution control norms set by ISO, OSHA- equivalent norms or some of the OEM specific audits requires proper compliance. So implementing oil mist collectors from brands like Filter-ON India strengthen brand image and are helpful in managing regulatory standards and client compliance when you consider the nut former parts to export markets or leading automotive companies.

If your nut forming machines operate without proper oil mist control, efficiency is being lost daily. Evaluate your setup or consult an expert like Filter ON India  to select the right system as per requirement, budget and scope. Contact us to learn more….

Frequently Asked Questions:

1. Why are oil mist collectors important in cold forging operations?

Ans: Oil mist collectors help remove airborne oil particles generated during high-speed nut forming processes. This improves air quality, reduces machine contamination, and enhances overall workplace safety.

Ans: By preventing oil buildup on machine components and electrical systems, oil mist collectors reduce maintenance requirements, improve machine reliability, and support smoother production.

Ans: Yes. Proper oil mist extraction helps maintain a stable lubrication environment around dies and punches, reducing excessive residue buildup and supporting longer tool life.

Ans: Yes. Oil mist collectors minimize oil accumulation on machines, floors, and surrounding equipment, helping reduce cleaning frequency, maintenance downtime, and overall operational costs.

Visit  blogs to learn more about the critical features of clean air system design and air pollution control systems created by Filter On India.

Filter On India has been working towards “Mission Zero Pollution” for the last 40+ years as a clean air solutions partner for industries. We specialize and have expertise in welding fumes, oil mist, coolant mist, dust collection, soldering, laser marking, laser cutting, plasma cutting, fumes in fastener manufacturing, ball point tip manufacturing, oil quenching, kitchen fumes, etc. Filter On has 70+ clean air solutions, so you can contact us for more information about our solutions. You can reach us through the web or visit us at our corporate office at Pune, or mail us at : marketing@filter-on.com

Facebook
Twitter
LinkedIn
Categories
Blogs

How to Choose the Right Oil Mist Collector for Gear Grinding & Hobbing Machines?

Grinding and Hobbing Mist Collector Guide
Grinding and Hobbing Mist Collector Guide

How to Choose the Right Oil Mist Collector for Gear Grinding & Hobbing Machines?

For gear grinding and gear hobbing machines, an gear grinding and hobbing  mist collector is essential because mist flows everywhere due to the continuous operation of these machines, which can cause serious health problems for workers if the oil mist and fumes continue to spread everywhere. An oil mist collector for gear grinding/hobbing machines requires some of the details we can discuss here.

Here we discuss “How to choose the right oil mist collector for gear grinding & hobbing machines?”

The Problem:

Oil mist generated during gear grinding and hobbing creates a smoky environment where particles spread throughout the area. Workers inhale these particles, leading to issues such as nose and throat infections, eye irritation, and nausea. Prolonged exposure to this environment can exacerbate these health problems, potentially resulting in serious health issues for the workers.

Other issues include productivity loss, slippery surfaces that make the shop floor accident-prone and risky, and oil and dirt deposits that increase fire susceptibility. The spread of oil mist in the work environment leads to various health issues for workers, resulting in high absenteeism and further productivity loss. Additionally, oil mist exposure creates slippery surfaces that may cause accidents, and the presence of mist and oil raises the likelihood of fire.

Choosing the right Gear Grinding and Hobbing Mist Collector?

When you consider buying an oil mist collector for a gear grinding or gear hobbing application, you must consider airflow, machine type, oil mist area, and enclosure design before buying the oil mist collector. If your selection of these above parameters is slightly wrong, then the purchase of your oil mist collector will be costlier. For example, suppose you have wrongly calculated the CFM, i.e., airflow; then you will buy a lesser-capacity oil mist collector, which leads to oil mist problems, as it is due to not effectively capturing the mist and the filtration system’s lesser capacity, which ultimately has issues in system breakdown. This results in increased costs due to the need for greater filtration capacity, which can ultimately drive up expenses.

Key Factors to Consider: For Gear Grinding and Hobbing Mist Collector:

  • Application Details: The application details are crucial for recommending a more suitable fume extraction system. It is essential to determine whether the application involves gear grinding or gear hobbing, as well as to identify the makes of the machines being used. This information is vital for understanding the system’s structure and developing appropriate solutions.
  • Oil/Coolant Type: Oil or coolant type is a critical detail to look for, as whether they are using neat cutting oil or water-soluble coolant for machining purposes is a must-know thing as it impacts oil mist generation.
  • Machine oil/coolant pressure (in Bar): Machine oil/coolant pressure is an important parameter as oil mist collector systems for CNC gear grinding and hobbing machines manage high-volume, fine-particle mist produced by neat oil. Particle size & density of oil mist generated depends on pressure of oil used. So, higher pressure applications would need better filtration.
  • Type of enclosure: Fully/Partially: Enclosing machines during gear grinding and gear hobbing is essential for effective oil mist collection, as these high-speed processes generate substantial heat, oil mist, and metal particles. An enclosure acts as a protective barrier, preventing contaminant dispersion, safeguarding worker health, and ensuring machine precision. These details are required for correcting the CFM requirement for oil mist collectors.
  • Cycle time for opening door/job loading/unloading: Cycle time between door openings plays an important role in deciding the airflow suction capacity. The more frequent the door openings, the more air changes of the machining chamber are needed to avoid the escape of fumes & mist from the door openings. It is important in the context of oil mist collectors for the gear grinding and gear hobbing machines, as it defines how much mist is generated during the cycle time. It is an important metric to consider when you choose the capacity of an oil mist collector.
  • Individual Machining Chamber Dimensions (LxWxH): The individual machine dimensions are an important factor for oil mist collectors, as they are required to determine how much volume oil mist is generated from the machine. This is important to determine the area of oil mist and mist coverage.
  • Size of Door Opening: Larger Size doors with frequent openings will need higher air flow suction capacity and vice versa.
  • Depth of Cut: Higher depth of cut generates more heat and thus produces more fumes / mist.
  • Cutting Chamber Size: The greatest working envelope (workpiece diameter, length, and module) that the machine can handle is referred to as the cutting chamber size in gear grinding and gear hobbing machines.
  • Coolant Type: Flood/Micro mist: The type of coolant used whether flood type or micro mist is a crucial factor in gear grinding and hobbing processes. This is important because both types are used simultaneously, influencing mist exposure. From the perspective of an oil mist collector, understanding the coolant type is essential for efficient mist collection.
Grinding and Hobbing Mist Collector Application
Grinding and Hobbing Mist Collector Application

Solutions for Oil Mist in Gear Grinding and Gear Hobbing Mist Collector:

In gear grinding and hobbing applications to control the mist, there are various solutions available, but unlike media-based systems, ESP (Electrostatic Precipitation Technology)-based systems are very beneficial for a long-term perspective.

How ESP works for Gear  Grinding and Hobbing Mist Collector:

Oil mist collectors use electrostatic precipitators (ESPs) to effectively remove small, sticky oil particles and smoke. The particles are charged using a high-voltage field, which draws them to grounded plates with an opposing charge. Particles are charged by an ionizer and then captured by a collector cell. High efficiency, minimal pressure loss, and the benefit of reusable filters are all provided by this technique.

Advantages:

  • Zero Replacement Cost (Washable, Reusable filters)
  • Low Operational cost (Low Power Consumption)
  • High Efficiency of Filtration for very fine submicron solid / liquid particles in machining mists.

Role of ESP in Gear Grinding & Gear Hobbing Mist Collector:

Electrostatic precipitators (ESPs) are high-efficiency air pollution control systems used in gear grinding and hobbing to absorb oil mist, vapors, and particles produced by plain oil coolants. ESPs play a key role in maintaining high-precision gear production. At the same time, they help reduce maintenance efforts by keeping the working environment clean and limiting the buildup of contaminants on machines.

  • High Efficiency in Oil Mist Removal:
    ESPs are highly effective, typically removing around 95–99% of fine, sub-micron oil mist and smoke generated during gear cutting, shaving, and grinding processes.
  • Worker Safety and Health:
    By controlling the spread of airborne mist, ESPs help reduce common issues faced by operators, such as respiratory discomfort, bronchitis, and skin irritation.
  • Protection of Sensitive Equipment:
    Fine particles in the air can settle on CNC panels and electronic components. ESPs help prevent it, which in turn reduces the chances of equipment failure and lowers maintenance requirements.
  • Cleaner Workplace Environment:
    They also help avoid oil fumes settling on floors, walls, and ceilings. This keeps the shop floor cleaner and reduces the risk of slips or accidents.
  • Oil Recovery and Reuse:
    In many industrial setups, the oil collected in ESP systems can be drained and used again, which helps reduce coolant wastage and keeps operating costs under control.

Filter ON India has been a prominent player in the Indian industrial air filtration market for the last 43 years, powered by ESP technology-based products, especially for welding, oil mist, dust collection, and kitchen dry scrubber systems

Frequently Asked Questions:
Why is an oil mist collector needed in gear grinding and hobbing?

Because these machines run continuously and generate fine oil mist that spreads across the shop floor, making the air unhealthy for worker.

If the sizing is wrong, the system won’t capture mist properly, which can lead to higher maintenance and additional costs later.

Yes, the type of coolant whether neat oil or water-soluble changes how much mist is produced during machining.

In many cases, yes. The collected oil can be drained and reused, which helps reduce wastage and saves on operating costs.

Visit  blogs to learn more about the critical features of clean air system design and air pollution control systems created by Filter On India.

Filter On India has been working towards “Mission Zero Pollution” for the last 40+ years as a clean air solutions partner for industries. We specialize and have expertise in welding fumes, oil mist, coolant mist, dust collection, soldering, laser marking, laser cutting, plasma cutting, fumes in fastener manufacturing, ball point tip manufacturing, oil quenching, kitchen fumes, etc. Filter On has 70+ clean air solutions, so you can contact us for more information about our solutions. You can reach us through the web or visit us at our corporate office at Pune, or mail us at : marketing@filter-on.com

Facebook
Twitter
LinkedIn
